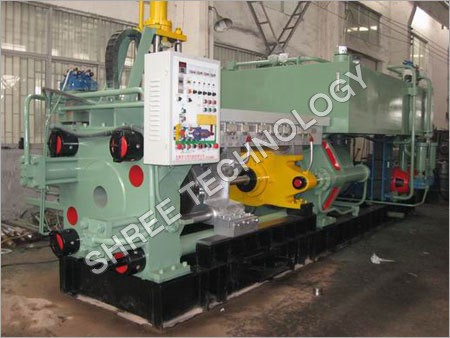

Aluminium Extrusion Press

Aluminium Extrusion Press
Aluminium Extrusion Press
Product Code : AEP
Brand Name : SHREE TECHNOLOGY
Product Description

 Aluminium Extrusion Press

This extrusion press is widely used in automotive and aerospace applications.In order to meet the varied requirements of clients, we are actively engaged in manufacturing & supplying Aluminium Extrusion Press that is robustly-built.To ensure optimum performance, this press is thoroughly tested on various set parameters by a team of quality controllers. This press is designed incorporating advanced technology to provide qualitative output to clients. Aluminium Extrusion Press Machine is fabricated as per the variegated requirements and demands of clients.

Product Features:

  • The QS series extruder is four-pillar hydraulic horizontal press
  • Featuring flexible control,elegant shape
  • well-produced,and has the advantages of stable and quiet performances
  • with the system of first of four container cylinder and strengthening the function of independent clamping
  • which greatly increase the copper aluminium products rate.
  • Also, for aluminium extrusion speed of advanced requirements,we have successfully developed nc extrusion system with constant speed, which realize real-time monitoring of digital machine.

Technical Specifications:

Type

Total Power

Working Pressure

Plunger Dia

Billet Size

Size of Discharge hole

Overall Size

Center Height

Total Weight

600 T

87.5 Kw

21 MPa

580 mm

90(3.5") x 460

110 x 130 mm

6200 x 2500 x 3100

905 mm

25 T

800 T

162.5 Kw

21 MPa

650 mm

110(4") x 550

140 x 160 mm

6300 x 2700 x 3300

1005 mm

38 T

1000 T

162.5 Kw

21 MPa

750 mm

120(5") x 620

160 x 180 mm

9500 x 3500 x 3900

1160 mm

50 T

1250 T

235 Kw

21 MPa

840 mm

140(5.5") x 650

180 x 210 mm

10000 x 3500 x 4670

1340 mm

65 T

1400 T

235 Kw

21 MPa

870 mm

152(6") x 680

180 x 210 mm

11300 x 3850 x 4670

1350 mm

72 T

1800 T

310 Kw

21 MPa

1000 mm

178(7") x 750

210 x 240 mm

12000 x 3850 x 4500

1465 mm

95 T

2500 T

540 Kw

21 MPa

1200 mm

228(9") x 1000

320 x 380 mm

16000 x 4500 x 6000

2010 mm

210 T

3150 T

950 Kw

21 MPa

1280 mm

254(10") x 1100

320 x 400 mm

18000 x 6000 x 8000

2310 mm

310 T
